Heavy Duty Vinyl Tarp - Flame Resistant
Made In The USA
By choosing this product, you're supporting American craftsmanship, local jobs, and ethical manufacturing. Built with care — designed to last.
Multipurpose Heavy Duty Protection
Our 18 oz. Flame Resistant Vinyl tarps are useful anywhere construction or manufacturing is taking place. They are suitable for:
• Welding curtains
• Covering flammable items
• Flame protection
• Scaffolding enclosure
• Weather protection
• Fabrication or salvage containment
• Isolation of heat hazards
And much more.
Flame Retardant Excellence
CPAI-84 and NFPA 701 Compliant: This tarp meets the specifications for the CPAI-84 U.S. Mil AA-55308 Type 1 and NFPA 701 Method 1 fire safety standards, which are recognized across the construction, manufacturing, and transport industries. These certifications confirm the material’s ability to resist ignition and limit flame spread, making it a reliable choice for environments where fire hazards are present.
Robust Design: Also referred to as a PVC-Coated Polyester Scrim Flame Retardant Tarp, this product features a tightly woven polyester base laminated with flame-retardant PVC (Vinyl). The result is a strong, flexible, and weather-resistant tarp that performs well in harsh settings. It stands up to prolonged sun exposure, moisture, abrasion, and fire, making it ideal for both indoor and outdoor use.
FR Vinyl in our 1973 Catalog
For over half a century, Humphrys has been manufacturing PVC-coated polyester covers specially formulated to withstand fire, sparks, sun, rain, and rough handling. As you can see from this snippet of our 1973 catalog, the purpose and capabilities of these products haven't changed a great deal.
All-American Excellence from Edge to Edge
| Test Data Specs | 18 oz. Flame Resistant Vinyl |
|---|---|
| Weave | Woven 1000x1300x20x22 pvc coated polyester |
| Weight | 18 oz per square yard +/- 5% |
| Flame Resistance | Meets Specs NFPA 701 Method 1 and CPAI 84 U.S.Mil AA-55308 Type 1 |
| Grab Tensile (ASTM D5034) | Warp: 484 lbf Fill: 494.5 lbf |
| Adhesion (ASTM D5970) | Warp: 27 +/- 2 lb./2 in. Fill: 27 +/- 2 lb./2 in. |
| Tensile Strength (ASTM D5100) | Warp: 315 +/- 15 lb./in. Fill: 315 +/- 15 lb./in. |
| Tongue Tear (ASTM D5134) | Warp: 110 +/- 10 lb. Fill: 110 +/- 10 lb. |
| Hydrostatic Resistance (ASTM D5512) | 500 psi |
| After-Flame (ASTM D5903) | Warp: ≤ 2.0 seconds Fill: ≤ 2.0 seconds |
| Char Length (ASTM D5903) | Warp ≤ 3.5 inches Fill: ≤ 3.5 inches |
| Phthalates Content (ASTM D3421) | Dibutyl Phthalate (DBP): Not Detected Benzylbutyl Phthalate (BBP): 0.020% Bis-(2-ethylhexyl) Phthalate (DEHP): 0.139% |
| Low Temperature Impact Resistance (ASTM D1790) | Pass at -40°F (no cracking of vinyl coating) |
| Sizing | Finish Size, +/- 3% of advertised dimension |
These values are typical data and are not intended as limiting specifications.
| Standard Features | |
 | Double-Thick Hems: Our 3-ply hems are heat-sealed instead of stitched for a durable edge without any holes caused by sewing needles. The result is a very thick and durable edge that resists abrasion and stands up to tension put on grommets. |
 | Black Brass Grommets: Half inch inner diameter grommets are spaced every two feet around our vinyl tarps, with with 1' spacing being a made-to-order option. Made in America out of brass, these grommets will not corrode with outdoor use, and can be relied on for years. |
Options for Made-to-Order Tarps:
Grommets with Reinforced Patches: When extra strength is needed, we can add reinforcement patches at each grommet. These patches help prevent the grommet from tearing out of the fabric. They're especially useful in high-stress situations like scaffolding, high winds, or water control applications.
D-Rings: This edge option is designed for situations that need extra-strong attachment points. It includes reinforced webbing, steel-plated zinc D-rings, and optional patches for added durability. The 1-1/8-inch D-rings make tie-downs easy and keep the tarp secure, even under heavy use, or extreme elemental exposure.
Rope in Hem: Whether you’re using grommets or D-rings, adding a rope inside the hem creates an edge that can handle heavy tension. The rope, sewn between layers of fabric, absorbs the pulling force and helps prevent stretching or tearing. This protects the tarp and keeps it intact even in tough conditions.
Take a look at this quick demonstration of the fire retardant properties of our FR pvc coated polyester scrim tarp. Though the tarp can be burnt away, it does not itself burn, and it self extinguishes within 2 seconds once the flame source is removed. To learn more about how this works, read our article all about fire retardant tarps.
High UV-Resistance
Our fabric is coated to resist the degrading effects of UV light.
1 Year Limited Warranty
Contact us for details on our 1 year pro-rated warranty.

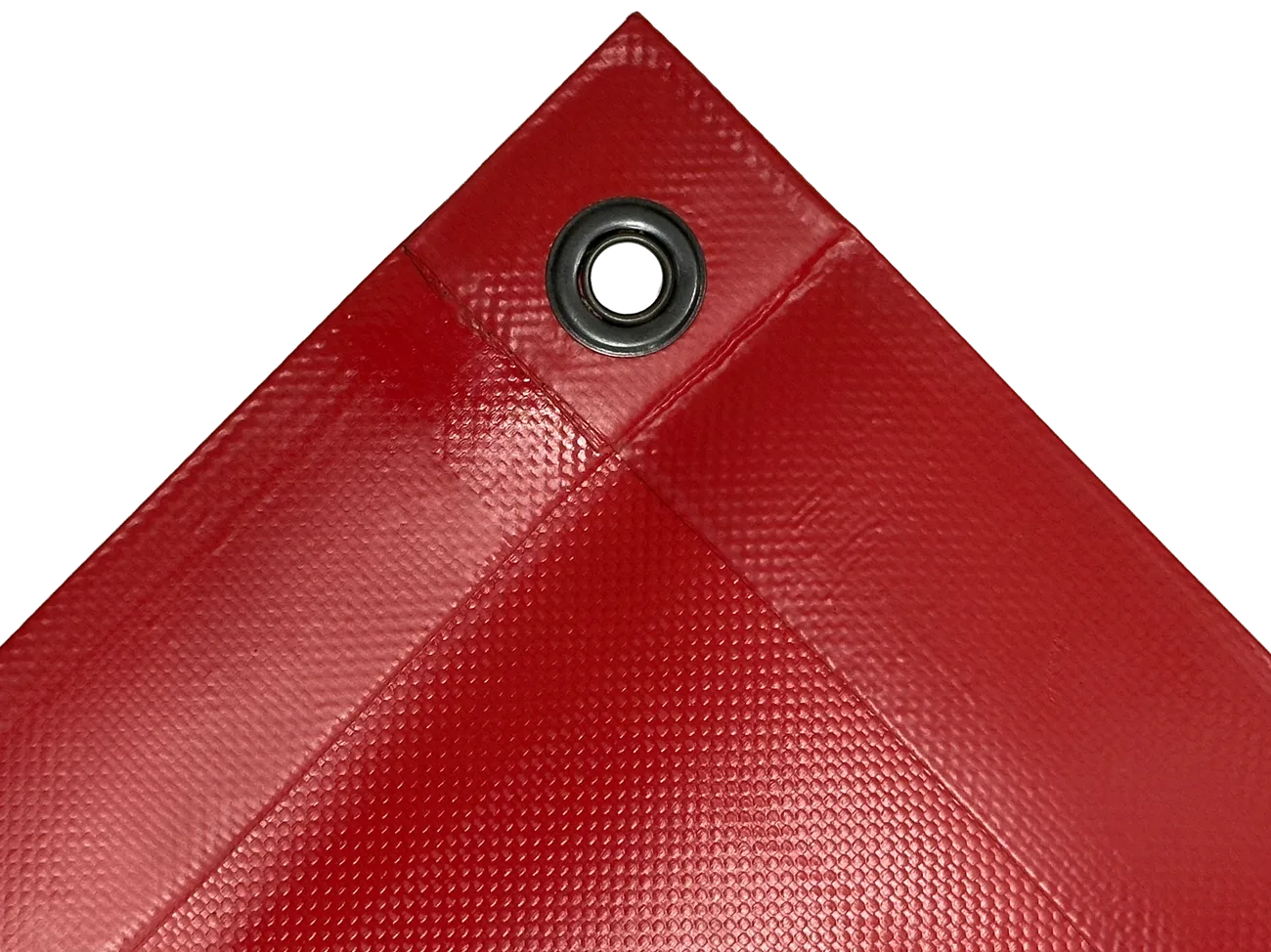

Strong Seams & Edges
Both are heat-sealed, not stitched, to create a seamless surface.
High Temperature Tolerance
Will remain flexible & usable in temperatures down to -40°F.

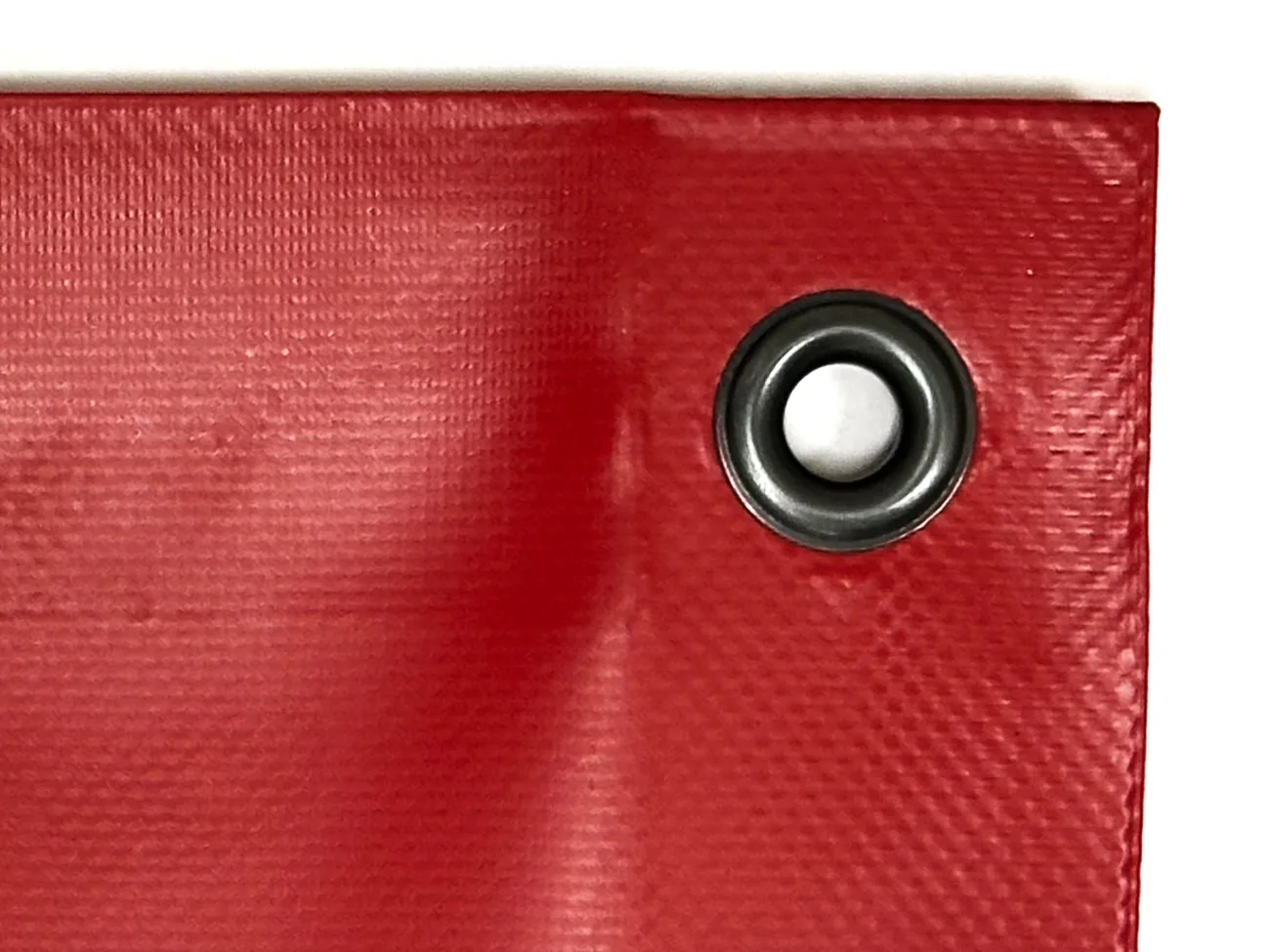

Brass Grommets
USA sourced, corrosion resistant, and black pvd coated.
D-Rings Optional
Steel-plated zinc D-Rings secured with reinforced webbing.
Custom Sizes Available
Need a different size or hem style? Request a quote.
Made in the USA
Manufactured in our Indiana facility.
